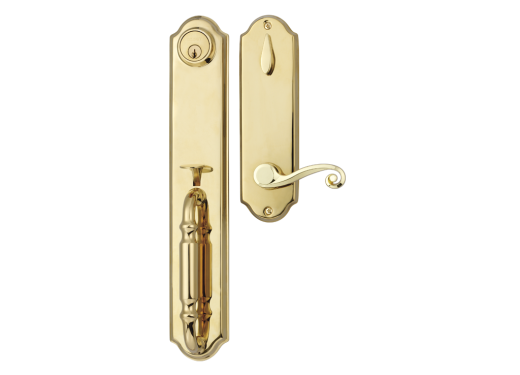

INTERCONNECTED ENTRANCE HANDLESET Chateau - Ritz (HXBR0Y10)
‧Solid Forged Brass
‧CH (Chateau) Handle / RZ (Ritz) Lever
‧Single Cylinder
‧LO3
‧Door Thickness：
1-3/8" to 2" (35mm ~ 51mm) standard.
‧Backset：
2-3/8" or 2-3/4" (60mm or 70mm) adjustable backset.
‧Latch：
2-2/8" or 2-3/4" (60mm/70mm) adjustable latch.
1" x2-1/4" (25.4mm x57mm) round corner faceplate standard. Square corner optional.
Deadbolt latch：Solid brass with hardened steel rod inserted, full 1" (25.4mm x 57mm).
Spring latch：Solid brass latch bolt with 1/2" (12.7mm) throw.
‧Cylinder：
5-pin Kwikset keyway with black powder metallurgy cylinder housing.
High security cylinder (CM, CX keyway) also available.
‧CH (Chateau) Handle / RZ (Ritz) Lever
‧Single Cylinder
‧LO3
‧Door Thickness：
1-3/8" to 2" (35mm ~ 51mm) standard.
‧Backset：
2-3/8" or 2-3/4" (60mm or 70mm) adjustable backset.
‧Latch：
2-2/8" or 2-3/4" (60mm/70mm) adjustable latch.
1" x2-1/4" (25.4mm x57mm) round corner faceplate standard. Square corner optional.
Deadbolt latch：Solid brass with hardened steel rod inserted, full 1" (25.4mm x 57mm).
Spring latch：Solid brass latch bolt with 1/2" (12.7mm) throw.
‧Cylinder：
5-pin Kwikset keyway with black powder metallurgy cylinder housing.
High security cylinder (CM, CX keyway) also available.
