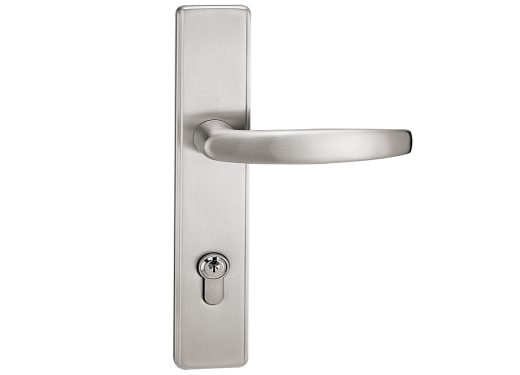

Stainless Steel - Seattle | Scorpio (MS-S0010)
• SE ( Seattle )
 • Single cylinder
• US32D
• TLM Product No. MS-S0010


‧Door Thickness
   1-3/8" to 1-3/4" (35mm~45mm) standard. 2" (51mm) optional.
‧Backset:

Available in 2-3/8" or 2-3/4" backset.( 60mm or 70mm) .
‧Mounting Bore Distance:
    3-1/3”(85mm) center to center.
‧Strike
    MF-F. T strikes 1” x 8-1/16”(25.4mm x 205mm) square corner.
‧Faceplate
    Solid brass or stainless steel.7/8”x 9-7/17”(22mm x 240mm) square corner.
‧Latch Bolt
    Latchbolt:Solid brass or stainless steel latch bolt with 1/2”(11.0mm) throw.
    Deadbolt:Solid brass or stainless steel katch bolt with 27/32”(21.0mm) throw.

‧Cylinder
    Euro profile 71mm cylinder with solid brass 6-pin Corbin “A1”(standard).
    High security cylinder (CM, CX keyway) also available.
