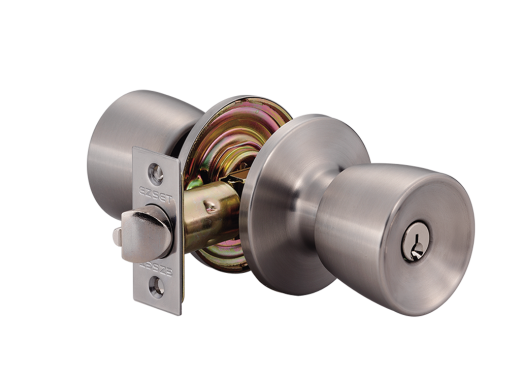

Sutton (TA-60000)
• SN (Sutton)
•Entry / Privacy / Passage
•US3 / US5 / US15 / US26 / US26D / 12P
•Cylinder：
5 pin Kwikset Keyway.
•Backset：
Adjustable (AL) 2-3/8” or 2-3/4”(60mm or 70mm)
•Door Thickness：
1-3/8” ~ 1-3/4” (35mm ~ 45mm)
•Strike
9102. full lip strike 1-3/4” x 2-1/4” (44.4mm x 57.0mm) square corner standard.
•Latch：
2-3/8” and 2-3/4” adjustable.(60mm and 70mm)
6-way latch also available.
Faceplate ：1" x 2-1/4" (25.4mm x 57mm) square corner standard.
Latch bolt ：Zinc alloy latch bolt with 1/2" throw. Nickel plated.
•Entry / Privacy / Passage
•US3 / US5 / US15 / US26 / US26D / 12P
•Cylinder：
5 pin Kwikset Keyway.
•Backset：
Adjustable (AL) 2-3/8” or 2-3/4”(60mm or 70mm)
•Door Thickness：
1-3/8” ~ 1-3/4” (35mm ~ 45mm)
•Strike
9102. full lip strike 1-3/4” x 2-1/4” (44.4mm x 57.0mm) square corner standard.
•Latch：
2-3/8” and 2-3/4” adjustable.(60mm and 70mm)
6-way latch also available.
Faceplate ：1" x 2-1/4" (25.4mm x 57mm) square corner standard.
Latch bolt ：Zinc alloy latch bolt with 1/2" throw. Nickel plated.
