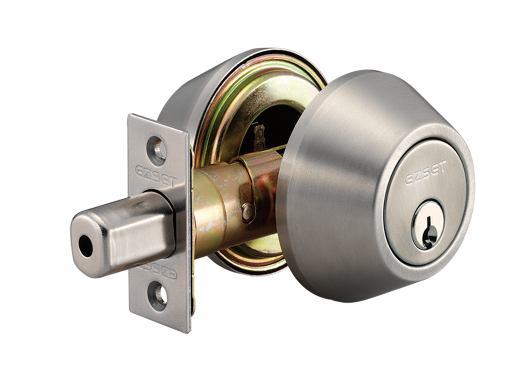

Double Cylinder (LT-10011)
• ANSI
ANSI A156.36-2010 Grade 3
•UL
3 hours fire rating certified. UL File No. R15047
• Double Cylinder
• US3 / US5 / US15 / US26D / US32 / US32D /12P
• Backset:
Adjustable (AL) 2-3/8” or 2-3/4” (60mm or 70mm).
• Door Thickness:
1-3/8” ~ 1-3/4” (35mm ~ 45mm).
•Strike:
9111. Rectangular strike 1-1/8" x 2-3/4" (28.4mm x 69.8mm) square corner standard.
•Latch:
2-3/8" or 2-3/4" adjustable (60mm or 70mm).
6-way latch also available.
•Cylinder:
5 pin Kwikset keyway standard. 6 pin cylinder optional.
Solid brass or zinc alloy cylinder housing also available.
• Brass or Stainless Steel housing
• Hardened steel pin inserted.
