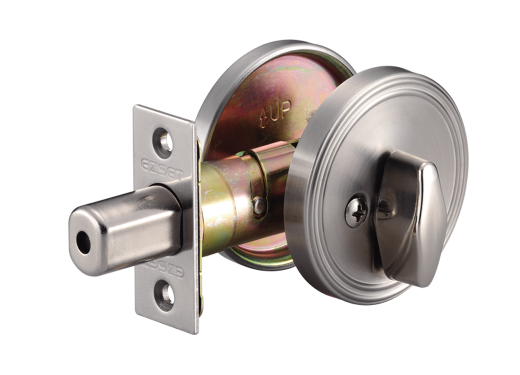

One Side Deadlock (LT-10070)
‧ANSI
   ANSI A156.36-2010 Grade 3

‧Latch:
   3 hours fire rating certified. UL File No. R15047
• One Side Deadlock
• US3 / US5 / US15 / US26D / US32 / US32D /12P

‧Door Thickness:
    1-3/8" to 1-3/4"(35mm~45mm) standard. 2" (51mm) optional.

‧Backset:
    Fits both 2-3/8" and 2-3/4" (60mm and 70mm).

‧Latch:
    2-3/8"(60mm) or 2-3/4"(70mm) adjustable latch.
    6-way latch also available.
    Steel latch bolt with hardened steel rod insert, Full 1" (25.4mm) throw.


‧cylinder:
    5 pin Kwikset keyway standard. 6 pin cylinder optional.
    Solid brass or zinc alloy cylinder housing also available.


‧High security cylinder also available.
