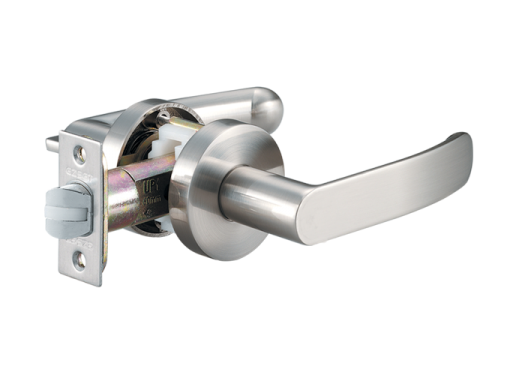

JB-3 | Passage (JB30S82)
‧FW (Flow)
‧Passage
‧US15
• Door thickness：
1-9/32” to 2” (32mm~51mm) standard.
• Backset：
2-3/8" (60mm) only.
• Door Prep.：
Cross Bore:ø1-29/32"(48mm)
Edge Bore:ø1" (25.4mm)
• Latch：
Zinc alloy latch bolt, nickel plated.
• Exposed Trim：
Zinc Alloy
• Door Handing：
Non-handed.
‧Passage
‧US15
• Door thickness：
1-9/32” to 2” (32mm~51mm) standard.
• Backset：
2-3/8" (60mm) only.
• Door Prep.：
Cross Bore:ø1-29/32"(48mm)
Edge Bore:ø1" (25.4mm)
• Latch：
Zinc alloy latch bolt, nickel plated.
• Exposed Trim：
Zinc Alloy
• Door Handing：
Non-handed.
