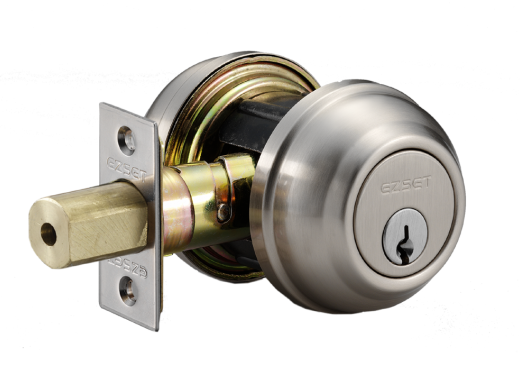

LU-20S11
Double Cylinder
US15
Certification
ANSI A156.5-2001 Grade 2.
3 hours fire rating certified.UL File No.R15047
Door Thickness
1-3/8” to 1-3/4” (35mm to 45mm)
2" (51mm) optional
Strike
LM. Rectangular strike with door reinforcer.
1-1/8" x 2-3/4" x 5/64" (28.4mm x 69.8mm x 2.0mm) square corner standard.
Other stikes are available upon request
Latch
2-3/8" and 2-3/4" adjustable. (60mm and 70mm)
Faceplate : 1" x 2-1/4"(254.mm x 57.0mm)
Specify round corner, square corner or drive-in.
Bolt :Solid brass Full 1" (25.4mm) throw deadbolt, with hardened steel rod insert.
Cylinder
5 pin solid brass Kwikset (standard) with black powder metallurgy cylinder housing.
Other keyways are available upon request
Finishes
US3,US5,US15,US26,US32,US32D,12P,LO3
Other finishes are available upon request
US15
Certification
ANSI A156.5-2001 Grade 2.
3 hours fire rating certified.UL File No.R15047
Door Thickness
1-3/8” to 1-3/4” (35mm to 45mm)
2" (51mm) optional
Strike
LM. Rectangular strike with door reinforcer.
1-1/8" x 2-3/4" x 5/64" (28.4mm x 69.8mm x 2.0mm) square corner standard.
Other stikes are available upon request
Latch
2-3/8" and 2-3/4" adjustable. (60mm and 70mm)
Faceplate : 1" x 2-1/4"(254.mm x 57.0mm)
Specify round corner, square corner or drive-in.
Bolt :Solid brass Full 1" (25.4mm) throw deadbolt, with hardened steel rod insert.
Cylinder
5 pin solid brass Kwikset (standard) with black powder metallurgy cylinder housing.
Other keyways are available upon request
Finishes
US3,US5,US15,US26,US32,US32D,12P,LO3
Other finishes are available upon request
