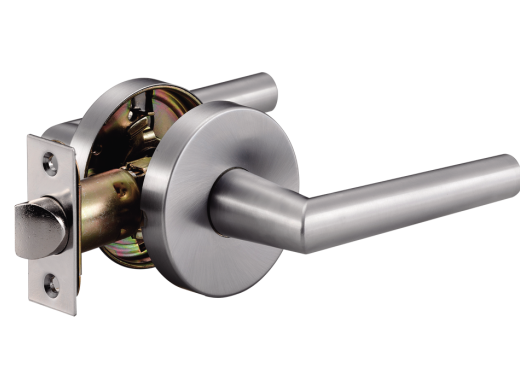

Sydney (AM-60S82)
‧
‧ Passage
‧ US15
‧ TLM Product No. AM-60S82
•Door Thickness:
1-3/8” ~ 2” (35mm ~ 51mm) .
•Backset:
Fits both 2-3/8” ( 60 mm) or 2-3/4” ( 70mm ) .
•Latch bolt:
1/2”（12.7mm）throw.
Solid brass, Stainless Steel or Zinc alloy latch bolt also available.
•Exposed Trim:
Wroughtbrass or Stainless Steel.
Pressure cast zinc lever.
•Door Handing: Non-handed.
•Protection sleeve design
•Concealed mounting screws
•Auto release function（for privacy lock）
‧ Passage
‧ US15
‧ TLM Product No. AM-60S82
•Door Thickness:
1-3/8” ~ 2” (35mm ~ 51mm) .
•Backset:
Fits both 2-3/8” ( 60 mm) or 2-3/4” ( 70mm ) .
•Latch bolt:
1/2”（12.7mm）throw.
Solid brass, Stainless Steel or Zinc alloy latch bolt also available.
•Exposed Trim:
Wroughtbrass or Stainless Steel.
Pressure cast zinc lever.
•Door Handing: Non-handed.
•Protection sleeve design
•Concealed mounting screws
•Auto release function（for privacy lock）
