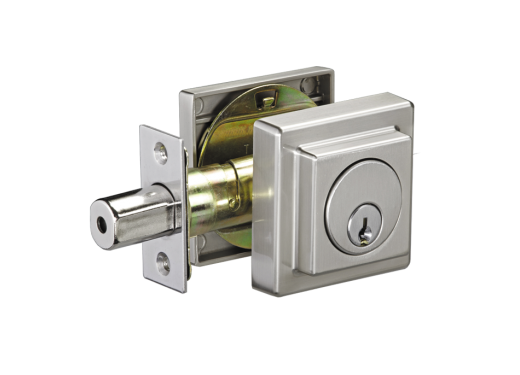

LTS0S10
Exposed Trim
Wrought brass or stainless steel or Zinc alloy
Door Thickness
1-3/8" to 1-3/4”(35mm ~ 45mm) standard. 2”(51mm) optional
Strike
9112 / 9113.
Rectangular Strike 1" x 2-1/4" (25.4mm x 57.0mm)square corner standard
Other strikes are available upon request
Latch
2-3/8" and 2-3/4" adjustable.(60mm and 70mm)
Latch bolt: steel latch with hardened steel rod insert, full 1”(25.4mm) throw
Cylinder
5-pin Kwikset keyway
Finishes
US3, US10B, US15, US26, US26D, 12P,
Other finishes are available upon request
Wrought brass or stainless steel or Zinc alloy
Door Thickness
1-3/8" to 1-3/4”(35mm ~ 45mm) standard. 2”(51mm) optional
Strike
9112 / 9113.
Rectangular Strike 1" x 2-1/4" (25.4mm x 57.0mm)square corner standard
Other strikes are available upon request
Latch
2-3/8" and 2-3/4" adjustable.(60mm and 70mm)
Latch bolt: steel latch with hardened steel rod insert, full 1”(25.4mm) throw
Cylinder
5-pin Kwikset keyway
Finishes
US3, US10B, US15, US26, US26D, 12P,
Other finishes are available upon request
