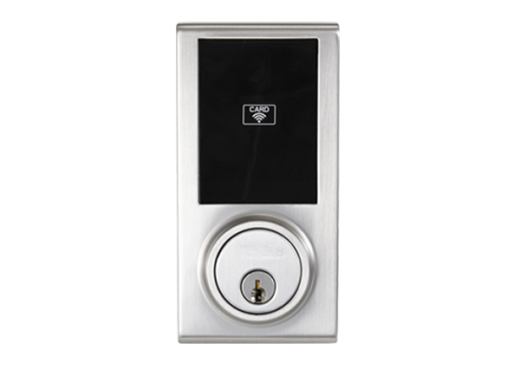

Electronic proximity Deadbolt Lock (PL2S0S10-HL)
- 2 Entry Methods：RFID card/Key
Hotel Lock
2 Access methods:
RFID card &key, 2 entry methods provided
Multiple hotel / Areas Management
Multiple client management
Database backup and restore function
Sensing smart plug (optional), power control efficiently and feedback to monitor controller
Simple turn the interior lever to unlock
Low battery alarm
When low battery lamp is on and battery alarm goes off, please change batteries
Make sure change the all used batteries and put all new ones
RFID Card
30 sets of user card
Material
Zinc alloy and steel
Dimension
133mm（L）x 67mm（W）x 23mm（H）for exterior trim
189mm（L）x 73mm（W）x 28mm（H）for interior trim
Door Thickness
35mm ~45mm
Backset
60mm or 70mm
Power supply
DC6V，four AA（1.5V，LR6）
Cylinder
5 pins, Kwikset keyway standard
6 pins, Schlage Keyway optional
Temperature
0℃~ 70℃(Battery excluded)
Humidity
30%~ 90% (Battery excluded )
International Protection
IP54
30 sets of user card
Material
Zinc alloy and steel
Dimension
133mm（L）x 67mm（W）x 23mm（H）for exterior trim
189mm（L）x 73mm（W）x 28mm（H）for interior trim
Door Thickness
35mm ~45mm
Backset
60mm or 70mm
Power supply
DC6V，four AA（1.5V，LR6）
Cylinder
5 pins, Kwikset keyway standard
6 pins, Schlage Keyway optional
Temperature
0℃~ 70℃(Battery excluded)
Humidity
30%~ 90% (Battery excluded )
International Protection
IP54
