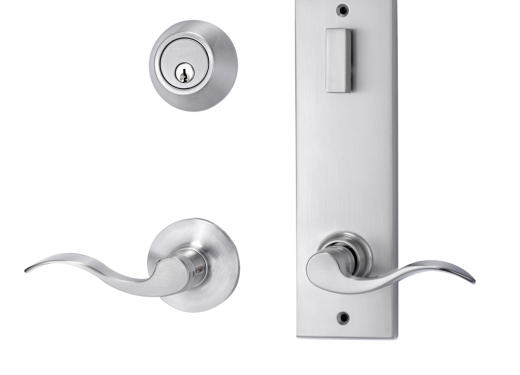

INTERCONNECTED ENTRANCE HANDLESET - (IQE0S82)
Exposed Trim
Wrought brass or stainless steel of Zinc alloy
Door Thickness
Fits 1-5/8” to 2" (40mm ~ 51mm)
Strike
Upper:9111
Rectangular strike 1-1/8" x 2-3/4" (28.4mm x 69.8mm) square corner standard
Lower:9102J
Full lip strike 1-3/4" x 2-1/4" (44.4mm x 57mm) square corner standard
Latch
Deadbolt latch: 2-3/8" or 2-3/4" (60mm / 70mm) adjustable latch
Faceplate: 1" x 2-1/4" (25.4mm x 57mm) square corner standard. Round corner optional
Bolt: steel with hardened steel rod insert, full 1" (25.4mm) throw
Spring latch: 2-3/8" or 2-3/4" (60mm / 70mm)
Bolt: Zing alloy latch bolt with 1/2" (12.7mm) throw
Cylinder
5-pin Kwikset keyway
High security cylinder (CM, CX keyway) also available
Finishes
US3,US10B,US15,US26,US26D,12P
Other finishes are available upon request
Wrought brass or stainless steel of Zinc alloy
Door Thickness
Fits 1-5/8” to 2" (40mm ~ 51mm)
Strike
Upper:9111
Rectangular strike 1-1/8" x 2-3/4" (28.4mm x 69.8mm) square corner standard
Lower:9102J
Full lip strike 1-3/4" x 2-1/4" (44.4mm x 57mm) square corner standard
Latch
Deadbolt latch: 2-3/8" or 2-3/4" (60mm / 70mm) adjustable latch
Faceplate: 1" x 2-1/4" (25.4mm x 57mm) square corner standard. Round corner optional
Bolt: steel with hardened steel rod insert, full 1" (25.4mm) throw
Spring latch: 2-3/8" or 2-3/4" (60mm / 70mm)
Bolt: Zing alloy latch bolt with 1/2" (12.7mm) throw
Cylinder
5-pin Kwikset keyway
High security cylinder (CM, CX keyway) also available
Finishes
US3,US10B,US15,US26,US26D,12P
Other finishes are available upon request
