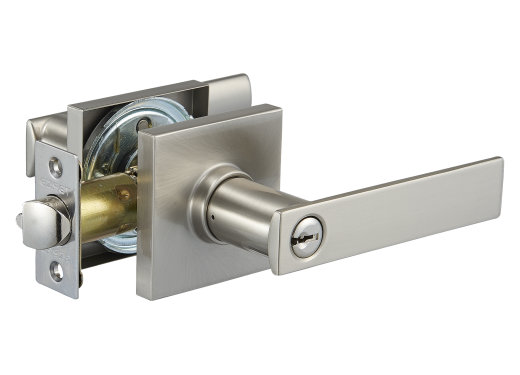

Tong Lung Metal Industry Co., LTD

Passage
US15
TLM Product No. TMS-0S00

Door Thickness
1-3/8" to 1-3/4" (35mm ~ 45mm)

Backset
Fits both 2-3/8” ( 60 mm) or 2-3/4” ( 70mm )

Latch bolt:
2-3/8" and 2-3/4" adjustable. (60mm and 70mm)
Bolt: zinc alloy with 1/2" (12.7mm) throw. Nickel plated

Exposed Trim
Rose: wrought brass or stainless steel; Lever: zinc-die casting

Installation Methods
Concealed/exposed

Auto release function
Available upon request

Cylinder
5 pin Kwikset Keyway (standard)
Other keyways are available upon request

Door Handing
Non-handed

Finishes
US3, US5, US10B, US15, US26, US26D, 12P
