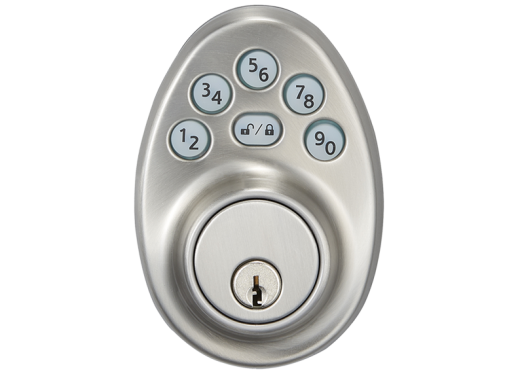

Keypad Deadbolt (PLU0S10)
- 2 Entry Methods：Password/Key
•Comply to ANSI/BHMA Grade 3
•Access method: Keypad/Key
•LED backlit available
•Auto-relocking function available
•One-time-use user code available
•Automatic lockdown if wrong user codes are entered over 5 times consecutive
•Detection and alarm for blocked or uncompleted dead bolt movements
•Power efficient design and low battery alarm
•Power supply
DC6V, four AA (1.5V) alkaline batteries
DC6V, four AA (1.5V) alkaline batteries
•Password
4-10 digits in length
1 set of master code / 6 sets of user code
4-10 digits in length
1 set of master code / 6 sets of user code
•Door Thickness
35~45mm
35~45mm
•Door Prep.
Ø 54mm for cross bore;
Ø 25.4mm for edge bore
Ø 54mm for cross bore;
Ø 25.4mm for edge bore
•Latch
60/70mm adjustable latch
60/70mm adjustable latch
•Cylinder
5 pins, Kwiksetkeyway standard
5 pins, Kwiksetkeyway standard
•Material
Exterior: stainless steel stamping
Exterior: stainless steel stamping
Interior: plastic
•Operating Temperature
-20℃~ 70℃
-20℃~ 70℃
•Humidity
30%~ 90%
30%~ 90%
