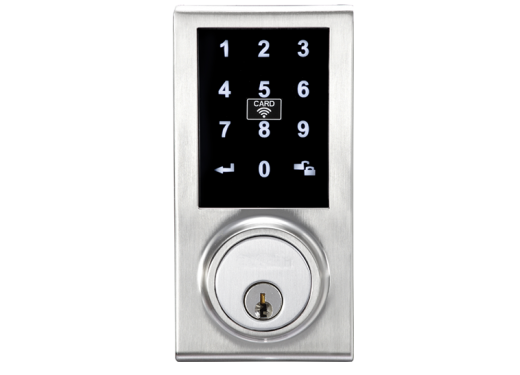

Electronic proximity Deadbolt Lock (PL2S0S10-C)
  • 3 Entry Methods:Code/RFID card/Key
PL2S0S10-C
Key / Code / RFID card 3in1


  • 30 user code available, 4 - 10 digits in length

  • 13.56MHz RFID card storage up to 99

  • One-time-use user code available

  • Add/delete user's code individually

  • Random pre-entry code

  • Auto-backlit touchpad

  • Contemporary looking design, elegant shape upgrade housing decoration

  • Auto-relocking feature to increase safety
  • Deadbolt detection
    Touchpad deadbolt with auto latch bolt locking detection prevents any incompete door locking
  • Automatic lockdown on wrong user code entry more  than 5 times consecutive the alarm will activate and system will halt for 45 seconds.
  • Low-battey alert
  • Battery
    DC6V, 4x AA alkaline batteries
  • Capacity of Memory
    4-10 digits in length
    1 set of master code for function set up
    30 sets of user code for unlocking the lock
    99 sets of user card for unlocking the lock


  • Lock Material
    Brass, stainless steel, zinc and steel

  • Door Thickness
    35 ~ 45mm

  • Backset
    60mm or 70mm

  • Door Prep
    Cross Bore : φ 2 - 1/8" (54mm)
    Edge bore : φ 1" (25.4mm)


  • Latch
    60mm/70mm adjustable latch

  • Cylinder
    5pins, Kwikset keyway standard

  • Finish
    US3, 12P, US15
    Other finishes are available upon request


  • Temperature
    -20℃ ~ 70℃ (battery excluded)

  • International Protection
    IP54
