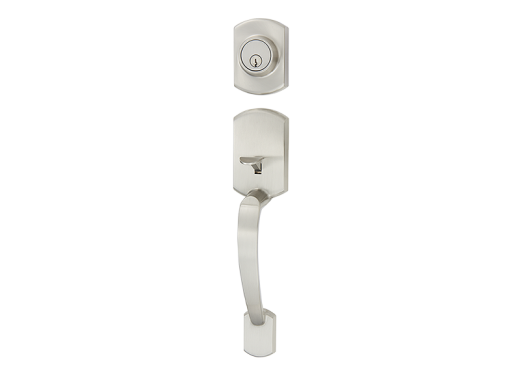

ZL-L0S10
- ZINC DIE-CASTING ENTRANCE HANDLESET
‧Single Handle
‧US15
‧Door Thickness：
Fits 1-3/8" to1-3/4" (35mm~45mm) standard. 2" (51mm) optional
‧Backset：
Fits both 2-3/8" or 2-3/4" (60mm or 70mm)
‧Strike：
Upper：9111.Rectangular Strike 1-1/8" x 2-3/4"(28.4mm x 69.8mm) square corner standard
Lower：9102J. Full Lip Strike 1-3/4" x 2-1/4"(44.4mm x 57mm) square corner standard
‧Latch：
Deadbolt latch：2-3/8" or 2-3/4" (60mm / 70mm) adjustable latch
Faceplate：1" x2-1/4" (25.4mm x 57mm) square corner standard. Round corner optional
Bolt：Steel with hardened steel rod insert, Full 1"(25.4mm) throw deadbolt
Spring latch：2-3/8" or 2-3/4" (60mm / 70mm)
Faceplate：1" x 2-1/4"(25.4mm x 57mm) square corner standard. Round corner optional
Bolt：Zinc alloy latch bolt with 1/2" (12.7mm) throw
‧Cylinder：
5-pin Kwikset keyway with zinc alloy cylinder housing.
Other keyways are available upon request
‧US15
‧Door Thickness：
Fits 1-3/8" to1-3/4" (35mm~45mm) standard. 2" (51mm) optional
‧Backset：
Fits both 2-3/8" or 2-3/4" (60mm or 70mm)
‧Strike：
Upper：9111.Rectangular Strike 1-1/8" x 2-3/4"(28.4mm x 69.8mm) square corner standard
Lower：9102J. Full Lip Strike 1-3/4" x 2-1/4"(44.4mm x 57mm) square corner standard
‧Latch：
Deadbolt latch：2-3/8" or 2-3/4" (60mm / 70mm) adjustable latch
Faceplate：1" x2-1/4" (25.4mm x 57mm) square corner standard. Round corner optional
Bolt：Steel with hardened steel rod insert, Full 1"(25.4mm) throw deadbolt
Spring latch：2-3/8" or 2-3/4" (60mm / 70mm)
Faceplate：1" x 2-1/4"(25.4mm x 57mm) square corner standard. Round corner optional
Bolt：Zinc alloy latch bolt with 1/2" (12.7mm) throw
‧Cylinder：
5-pin Kwikset keyway with zinc alloy cylinder housing.
Other keyways are available upon request
