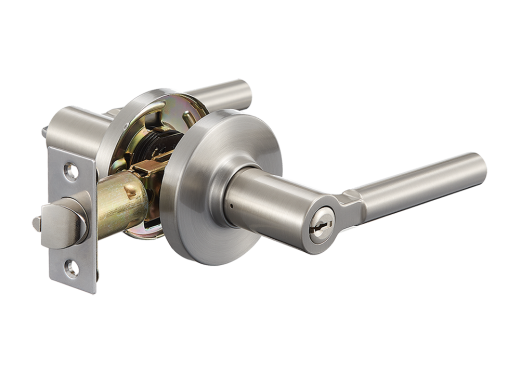

Oslo (TLM30S00)
- Comply to ANSI/BHMA Grade 3
- Contemporary lever design with completed functions expands current contemporary product line
- Sleek rose and lever styles with concealed mounting screws offers elegant look
- Small lever rotation for easier operation
- Auto release function helps quick exit (available upon request)
- UL certification available
- Mechanical lifetime guarantee
Function :
Entry, privacy, passage, dummy
Rose Type :
Round / square
Door Thickness :
1-3/8" to 1-3/4" (35mm ~ 45mm), Optional: 2” (51mm).
Door Prep. :
Ø 2-1/8” (54mm) for cross bore.
Ø 1” (25mm) for edge bore.
Installation Method :
Concealed/exposed.
Latch :
Square corner with 2-3/8" and 2-3/4" (60mm and 70mm) adjustable standard.
4-way & 6-way latch also available.
Cylinder :
5 pins; standard keyway: Kwikset, Weiser, Schlage, Yale, C4.
Finish :
US3 / US5 / US15 / US26 / US26D / 11P / 514…,etc..
Entry, privacy, passage, dummy
Rose Type :
Round / square
Door Thickness :
1-3/8" to 1-3/4" (35mm ~ 45mm), Optional: 2” (51mm).
Door Prep. :
Ø 2-1/8” (54mm) for cross bore.
Ø 1” (25mm) for edge bore.
Installation Method :
Concealed/exposed.
Latch :
Square corner with 2-3/8" and 2-3/4" (60mm and 70mm) adjustable standard.
4-way & 6-way latch also available.
Cylinder :
5 pins; standard keyway: Kwikset, Weiser, Schlage, Yale, C4.
Finish :
US3 / US5 / US15 / US26 / US26D / 11P / 514…,etc..
