- Comply to ANSI/BHMA Grade 3.

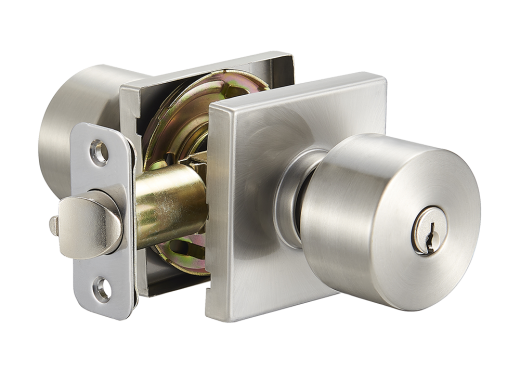

- Contemporary knob design with completed functions expands current contemporary product line.
- Sleek rose and knob styles with concealed mounting screws offers modern look.
- Interior knob removable for easy installation.
- One piece high security knob.
- UL certification available.
- Mechanical lifetime guarantee.
Functions :
Entry, privacy, passage, dummy.
Rose Type :
Round / Square
Door Thickness :
1-3/8" to 1-3/4" (35mm ~ 45mm)
Optional: 2” (51mm)
Door Prep. :
Ø 2-1/8” (54mm) for cross bore
Ø 1” (25mm) for edge bore
Latch :
Square corner with 2-3/8" and 2-3/4" (60mm and 70mm) adjustable standard.
4-way & 6-way latch also available
Cylinder :
5 pins; standard keyway: Kwikset, Weiser, Schlage, Yale, C4 .
Other keyways are available upon request.
Finish :
US5 / US15 / US26D / US32D / 11P / 514…,etc..
