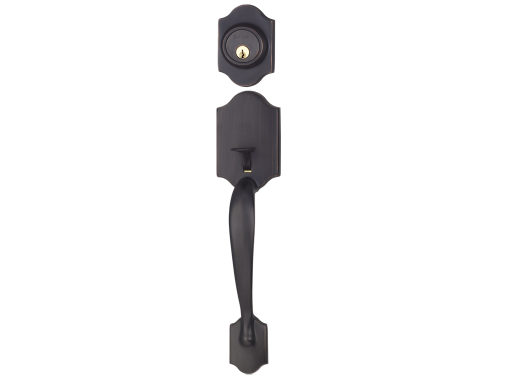

SOLID FORGED BRASS ENTRANCE HANDLESET - Imperial (HI-33910)
‧IM (Imperial)
‧Entry
‧12P
‧TLM Product No. HI-33910
‧Door Thickness：
Fits 1-3/8" to1-3/4" (35mm~45mm) standard. 2" (51mm) optional.
‧Backset：
Fits both 2-3/8" or 2-3/4" (60mm or 70mm) .
‧Strike：
Upper：9111.Rectangular Strike 1-1/8" x 2-3/4"(28.4mm x 69.8mm) square corner standard.
Lower：9102. Full Lip Strike 1-3/4" x 2-1/4"(44.4mm x 57mm) square corner standard.
‧Latch：
Deadbolt latch：2-3/8" or 2-3/4" (60mm / 70mm) adjustable latch.
Faceplate：1" x2-1/4" (25.4mm x 57mm) square corner standard. Round corner optional.
Bolt：Solid brass with hardened steel rod insert, full 1" (25.4mm ) throw.
Spring latch：2-3/8" or 2-3/4" (60mm / 70mm).
Bolt：Solid brass latch bolt with 1/2"(12.7mm) throw.
‧Cylinder：
5-pin Kwikset keyway with black powder metallurgy cylinder housing.
High security cylinder (CM, CX keyway) also available.
‧Entry
‧12P
‧TLM Product No. HI-33910
‧Door Thickness：
Fits 1-3/8" to1-3/4" (35mm~45mm) standard. 2" (51mm) optional.
‧Backset：
Fits both 2-3/8" or 2-3/4" (60mm or 70mm) .
‧Strike：
Upper：9111.Rectangular Strike 1-1/8" x 2-3/4"(28.4mm x 69.8mm) square corner standard.
Lower：9102. Full Lip Strike 1-3/4" x 2-1/4"(44.4mm x 57mm) square corner standard.
‧Latch：
Deadbolt latch：2-3/8" or 2-3/4" (60mm / 70mm) adjustable latch.
Faceplate：1" x2-1/4" (25.4mm x 57mm) square corner standard. Round corner optional.
Bolt：Solid brass with hardened steel rod insert, full 1" (25.4mm ) throw.
Spring latch：2-3/8" or 2-3/4" (60mm / 70mm).
Bolt：Solid brass latch bolt with 1/2"(12.7mm) throw.
‧Cylinder：
5-pin Kwikset keyway with black powder metallurgy cylinder housing.
High security cylinder (CM, CX keyway) also available.
